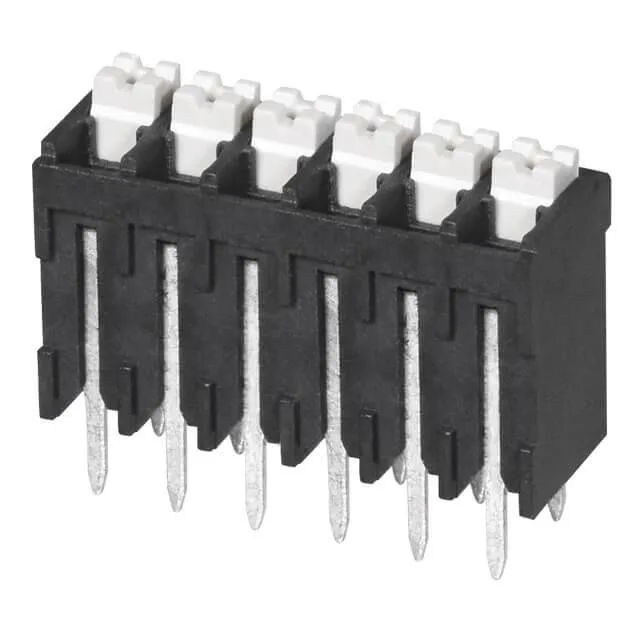

CUI Devices TBLH10V-350-06BK
MPNTBLH10V-350-06BK
Active
TERMINAL BLOCK, SCREWLESS, HIGH
$2.23Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTBLH10V-350
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBLH10V-350 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 16-24 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP) |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.138\" (3.50mm) |
| Package | Tray |
| Features | Push Button Actuated |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 6 |
