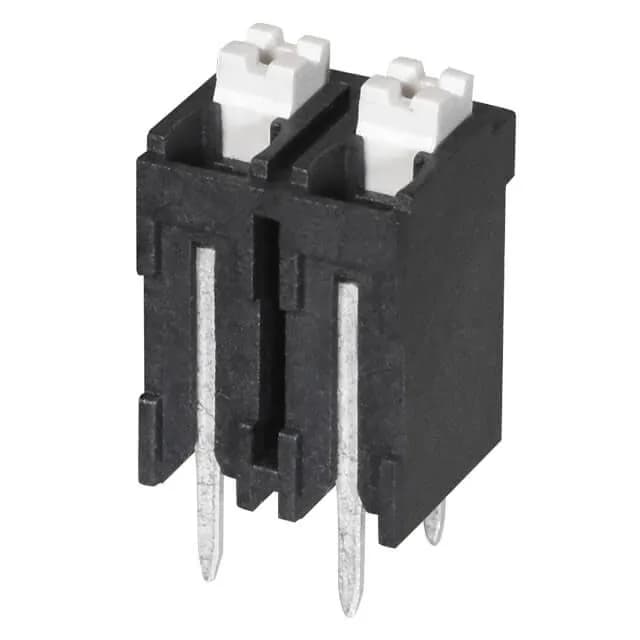

CUI Devices TBLH10V-500-02BK
MPNTBLH10V-500-02BK
Active
TERMINAL BLOCK, SCREWLESS, HIGH
$0.8200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTBLH10V-500
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBLH10V-500 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 16-24 AWG |
| Wire termination | Screwless - Push Button Clamp |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP) |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Tray |
| Features | Push Button Actuated |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 2 |
