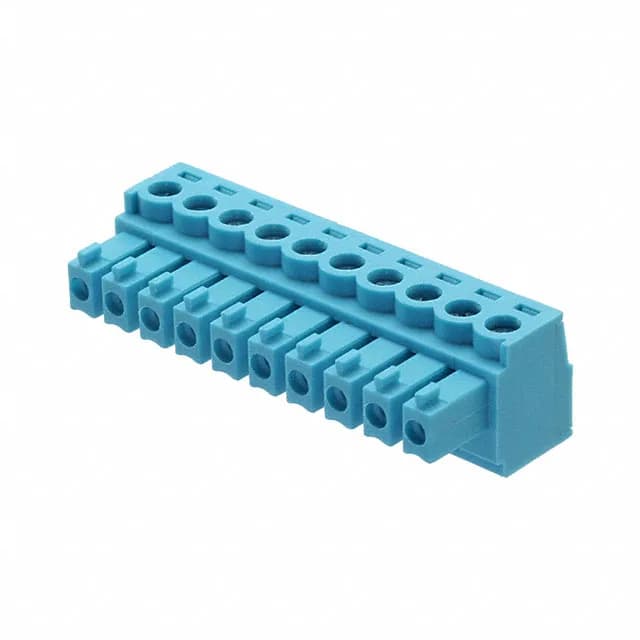

CUI Devices TBP02P1-381-10BE
MPNTBP02P1-381-10BE
Active
$1.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | TBP02P1-381 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Current - IEC | 7A |
| Plug wire entry | 180° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 1.5mm² |
| Operating temperature | -40°C~105°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Blue |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.441\" (11.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bag |
| Screw size | M2 |
| Torque - screw | 0.2 Nm (1.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Nickel |
