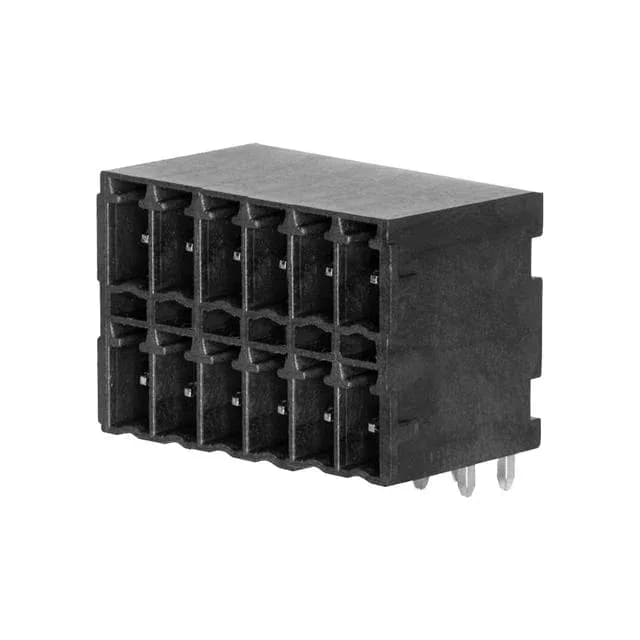

CUI Devices TBP03R12-350-06BK
MPNTBP03R12-350-06BK
Active
TERM BLOCK HDR 12POS 90DEG 3.5MM
$2.9900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTBP03R12-350
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | TBP03R12-350 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Insulation height | 0.598\" (15.19mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Box |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.102\" (2.60mm) |
| Positions | 12 |
| Positions per level | 6 |
| Contact mating finish | Tin |
