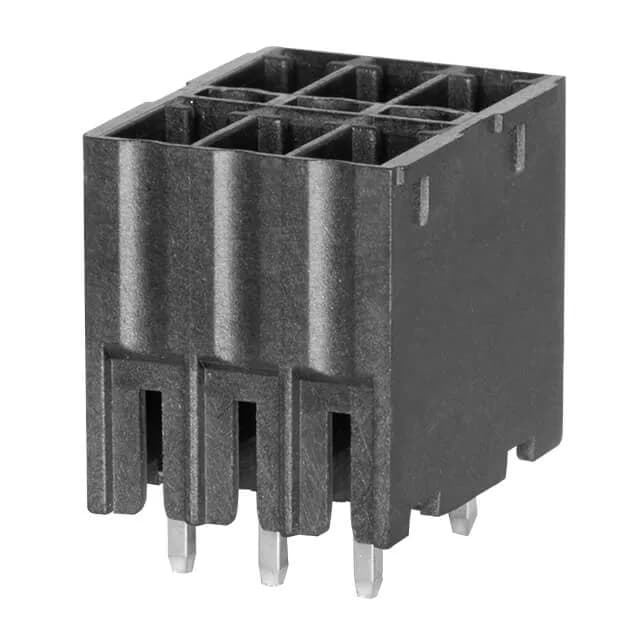

CUI Devices TBP03R3-350-04BK
MPNTBP03R3-350-04BK
Active
2~24 POLES, PLUGGABLE, RECEPTACL
$2.2300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTBP03R3-350
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | TBP03R3-350 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Insulation height | 0.524\" (13.30mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Box |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.102\" (2.60mm) |
| Positions | 8 |
| Positions per level | 4 |
| Contact mating finish | Tin |
