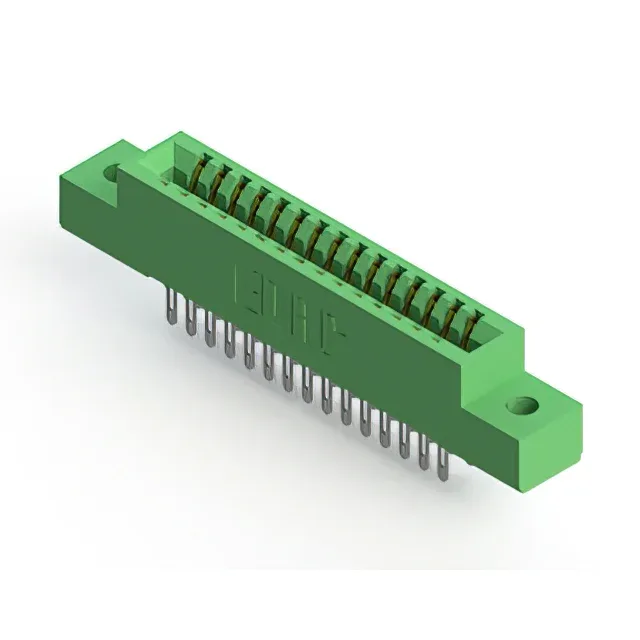

EDAC Inc. 341-030-500-202
MPN341-030-500-202
Active
CONN EDGE DUAL FMALE 30POS 0.100
$4.65Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series341
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 341 |
| Card type | Non Specified - Dual Edge |
| Type | Semi Bellows |
| Mounting | Through Hole |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Copper Alloy |
| Material - insulation | Diallyl Phthalate (DAP) |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female |
| Package | Bulk |
| Read out | Dual |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder Eyelet(s) |
| Card thickness | 0.054\" ~ 0.070\" (1.37mm ~ 1.78mm) |
| Contact finish | Gold |
| Flange feature | Flush Mount, Top Opening, Unthreaded, 0.128\" (3.25mm) Dia |
| Rows | 2 |
| Termination rows | 2 |
| Positions | 30 |
| Contact finish thickness | 10.0µin (0.25µm) |
| Number of positions (Bay, row) | 15 |
