EDAC Inc. 627-W7W-220-012
MPN627-W7W-220-012
Active

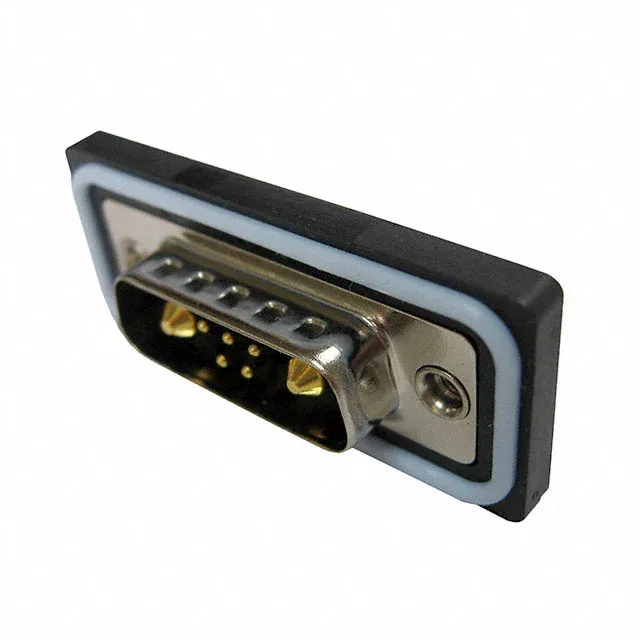

CONN D-SUB PLUG 7P PNL MNT SLDR
$13.02Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series627-W
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 627-W |
| Type | Signal and Power |
| Mounting | Panel Mount, Through Hole |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Shell size, connector layout | 2 (DA, A) - 7W2 |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40) |
| Rows | 2 |
| Positions | 7 (5 + 2 Power) |
| Contact finish thickness | Flash |
