EDAC Inc. 628-009-220-042
MPN628-009-220-042
Active

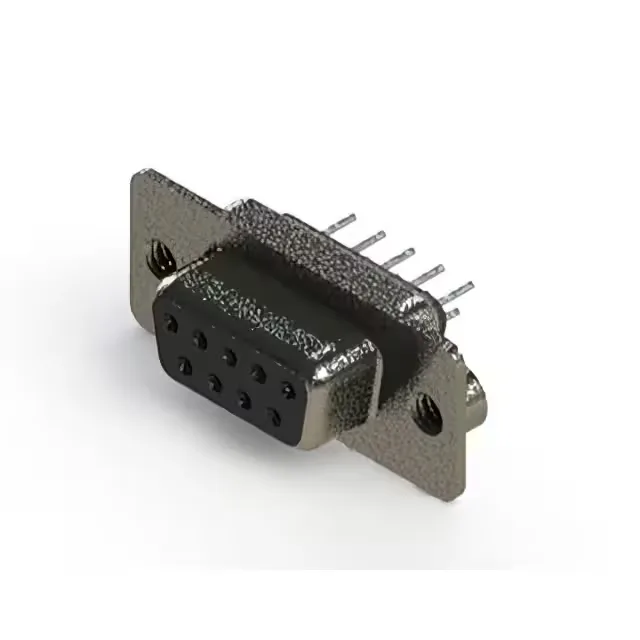

CONN D-SUB RCPT 9P PNL MNT SLDR
$2.21Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series628 (Metal)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 628 (Metal) |
| Type | Signal and Power |
| Mounting | Through Hole |
| Connector type | Receptacle, Female Sockets |
| Current rating | 3A per Contact |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyester Thermoplastic |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
