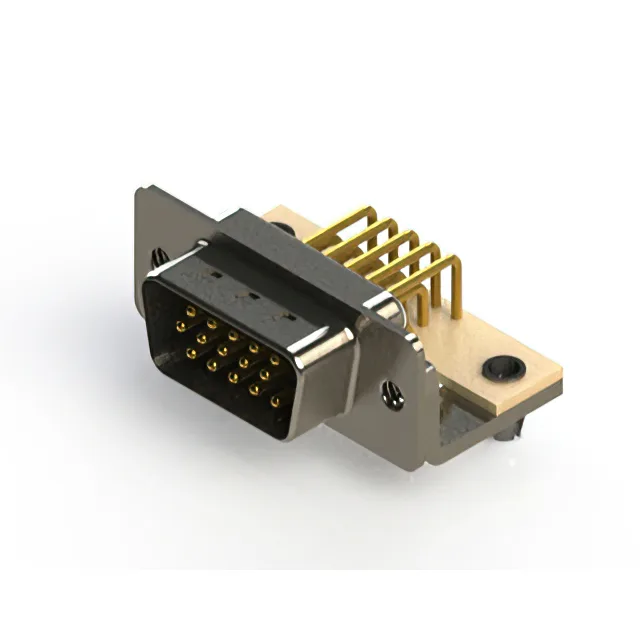

EDAC Inc. 633-M15-263-BN3
MPN633-M15-263-BN3
Active
633M SERIES RIGHT ANGLE D-SUB PL
$7.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series633-M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 633-M |
| Type | Signal |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | D-Sub, High Density |
| Current rating | 5A per Contact |
| Contact form | Machined |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polyamide (PA6T), Nylon 6T |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 3 |
| Backset spacing | 0.350\" (8.89mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
