EDAC Inc. 634-015-274-992
MPN634-015-274-992
Active

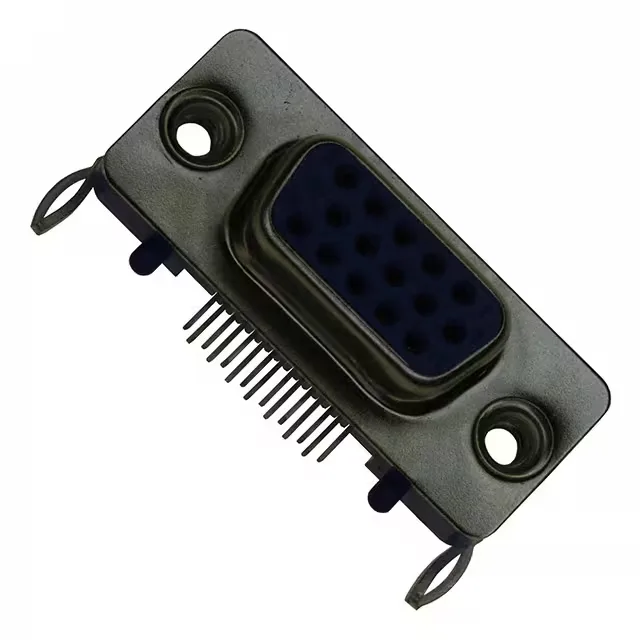

CONN D-SUB HD RCPT 15P R/A SLDR
$2.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series634
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 634 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Current rating | 1A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -40°C ~ 230°C |
| Color | Blue |
| Contact material | Phosphor Bronze |
| Dielectric material | Polyamide (PA6T), Nylon 6T |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 3 |
| Backset spacing | 0.079\" (2.00mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
