EDAC Inc. A63-113-431P112
MPNA63-113-431P112
Active

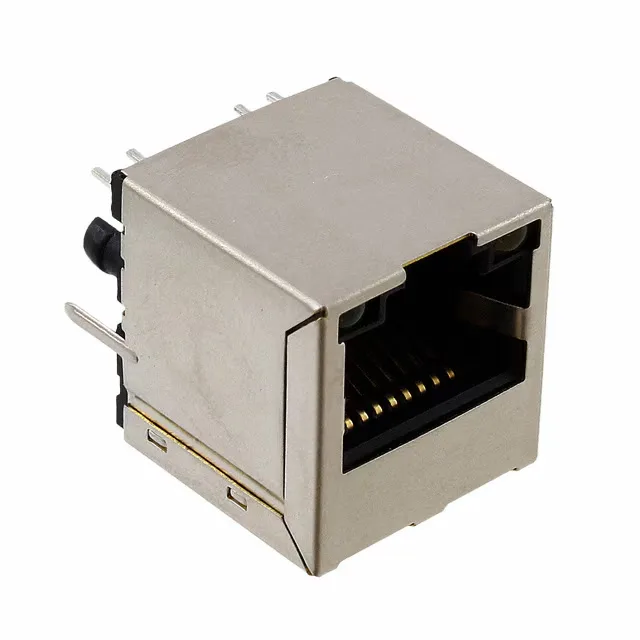

CONN JACK 1PORT 100 BASE-T PCB
$6.79Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesA63
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | A63 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| LED color | Green - Yellow |
| Housing material | Polybutylene Terephthalate (PBT), Polyester |
| Height above board | 0.664\" (16.87mm) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Orientation | Vertical |
| Termination | Solder |
| Applications | 10/100 Base-T, AutoMDIX |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 15.0µin (0.38µm) |
| Number of cores per jack | 4 |
