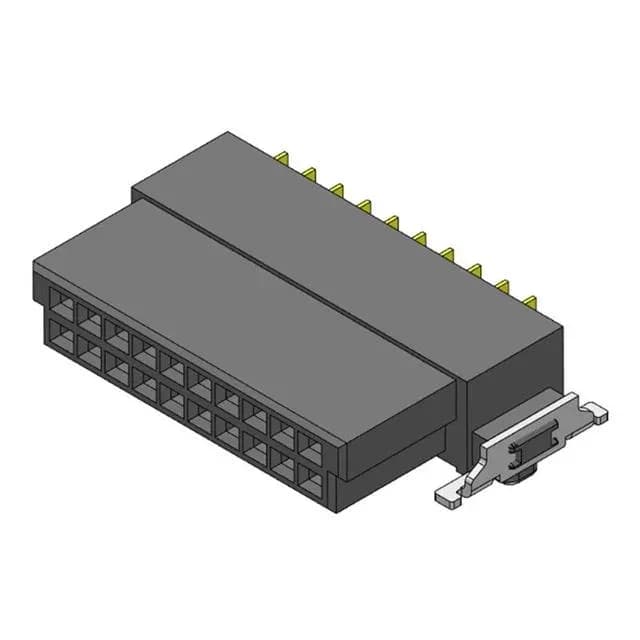

Greenconn CBED202-1079B001C1AD
MPNCBED202-1079B001C1AD
Active
PITCH 1.27MM FEMALE CONNETOR SMC
$1.9700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCBED202
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CBED202 |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 1.7A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.152\" (3.85mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
