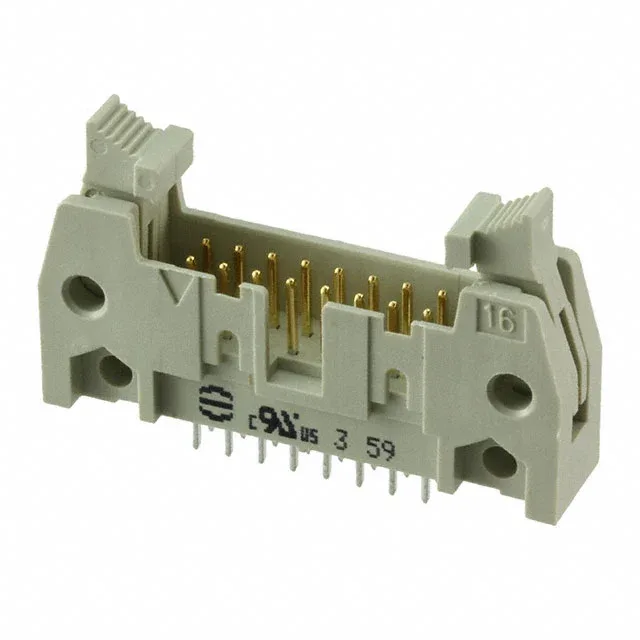

HARTING 9185167914

HARTING 9185167914

MPN9185167914
Active

CONN HEADER VERT 16POS 2.54MM

$2.88Ref. price · indicative, final on quote
HARTING 9185167914 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSEK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

9185167914 key specifications
ParameterValue
SeriesSEK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Short
Operating temperature-55°C ~ 125°C
Contact materialCopper Alloy
Insulation colorGray
Insulation height0.681\" (17.30mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

9185167914 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Overall contact length0.650\" (16.51mm)
Contact finish - matingGold
Contact length - mating0.228\" (5.80mm)
