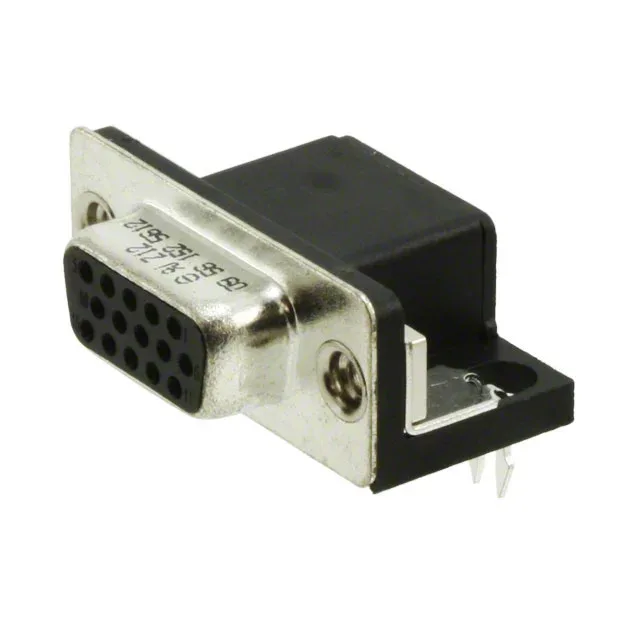

HARTING 9561525612
MPN9561525612
Active
CONN D-SUB HD RCPT 15P R/A SLDR
$5.76Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Current rating | 2A |
| Contact form | Stamped |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold or Gold-Palladium |
| Flange feature | Housing/Shell (4-40) |
| Rows | 3 |
| Backset spacing | 0.350\" (8.89mm) |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
