HARTING 9672255604
MPN9672255604
Active

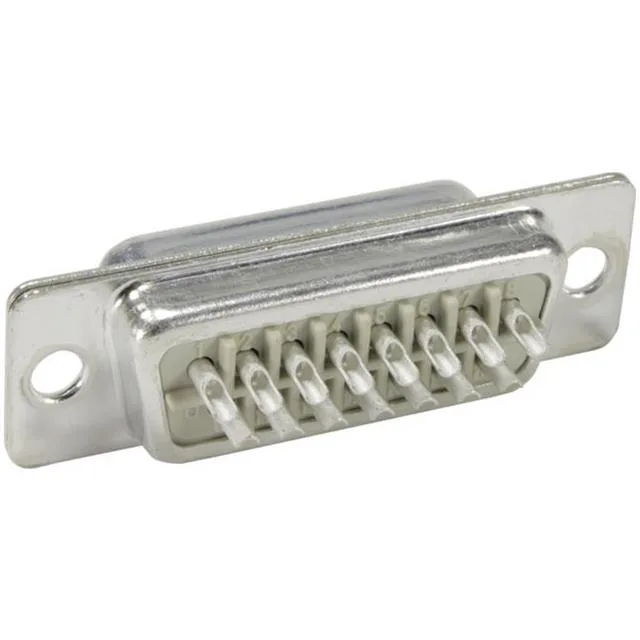

CONN D-SUB PLUG 25POS SLDR CUP
$4.19Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Current rating | 6.5A |
| Contact form | Stamped |
| Wire gauge | 20 AWG |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Shell material, finish | Steel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Grounding Indents |
| Termination | Solder Cup |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 25 |
