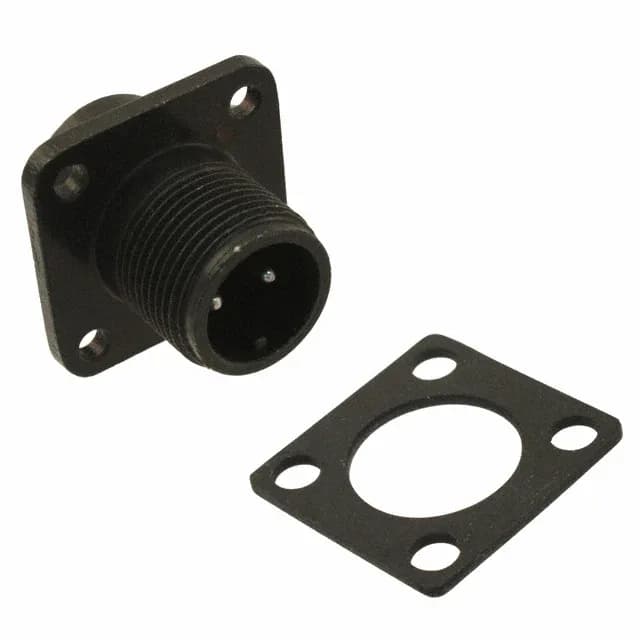

Harwin Inc. C90-3102R10SL-4P
MPNC90-3102R10SL-4P
Active
CONN RCPT MALE 2P SOLDER CUP
$9.9800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesC90
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C90 |
| Mounting | Panel Mount |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 500VAC, 700VDC |
| Current rating | 13A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange |
| Cable opening | 0.620\" (15.75mm) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Shell material | Aluminum Alloy |
All specifications
| Parameter | Value |
|---|---|
| Insert material | Synthetic Rubber |
| Contact material | Copper Alloy |
| Primary material | Metal |
| Package | Bag |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Automotive, Industrial |
| Shell finish | Black Zinc Cobalt Alloy |
| Positions | 2 (Power) |
| Shell size - insert | 10SL-4 |
| Contact finish - mating | Silver |
