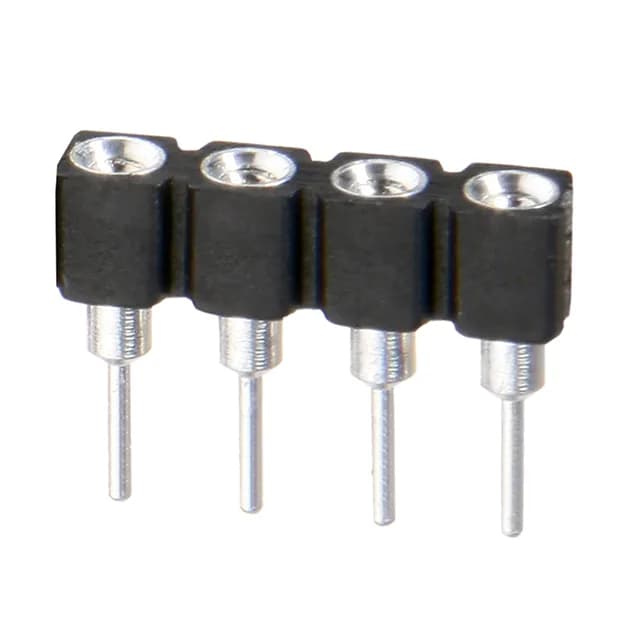

Harwin Inc. D01-9970442
MPND01-9970442
Active
CONN SOCKET SIP 4POS GOLD
$0.6500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesD01-997
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | SIP |
| Series | D01-997 |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 196.9µin (5.00µm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 4 (1 x 4) |
