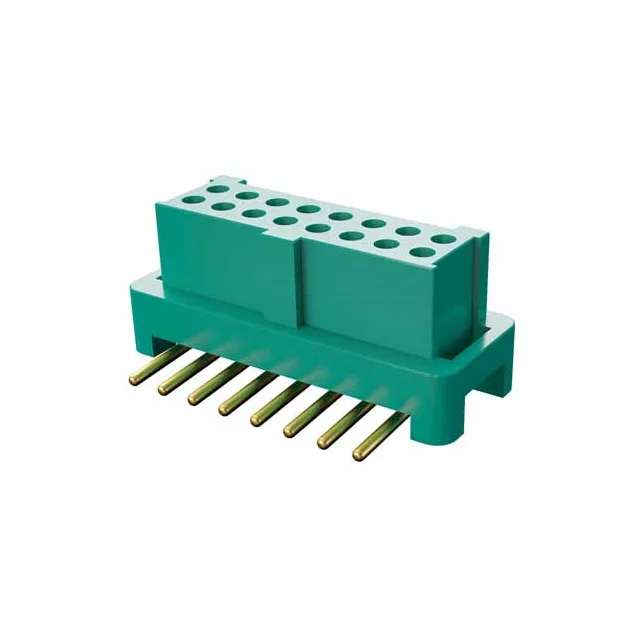

Harwin Inc. G125-FS11605L0R
MPNG125-FS11605L0R
Active
CONN RCPT 16POS 0.049 GOLD SMD
$17.82Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGecko
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Gecko |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Current rating | 2A |
| Operating temperature | -65°C ~ 150°C |
| Contact material | Copper Alloy |
| Insulation color | Green |
| Insulation height | 0.207\" (5.25mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place, Polarizing Key |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 16 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
