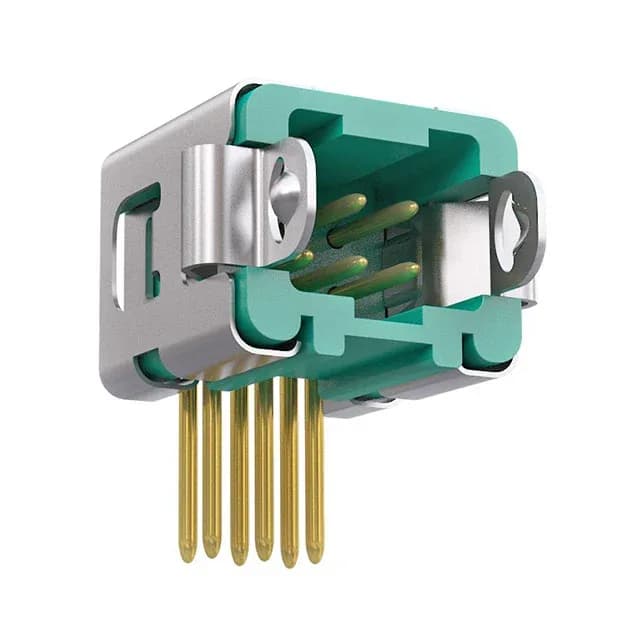

Harwin Inc. G125-MH10605L3P
MPNG125-MH10605L3P
Active
CONN HEADER R/A 6POS 1.25MM
$12.3400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGecko
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Gecko |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250V |
| Current rating | 2A |
| Operating temperature | -65°C ~ 150°C |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.219\" (5.56mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Strip |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 6 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
