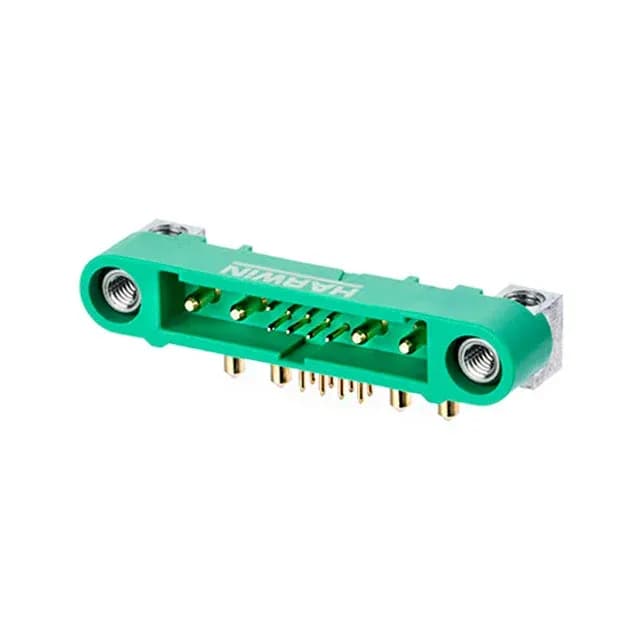

Harwin Inc. G125-MH10805M4-2AD2ADP
MPNG125-MH10805M4-2AD2ADP
Active
CONN HDR 4PWR 8SIG PCB VERT
$78.85Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGecko MT Reverse Fix
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Gecko MT Reverse Fix |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Screw Lock |
| Voltage rating | 450V |
| Current rating | 2A, 10A |
| Operating temperature | -65°C ~ 150°C |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.207\" (5.25mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Strip |
| Features | Mating Flange, Mounting Flange, Pick and Place, Polarizing Key |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 12 (8 + 4 Power) |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
