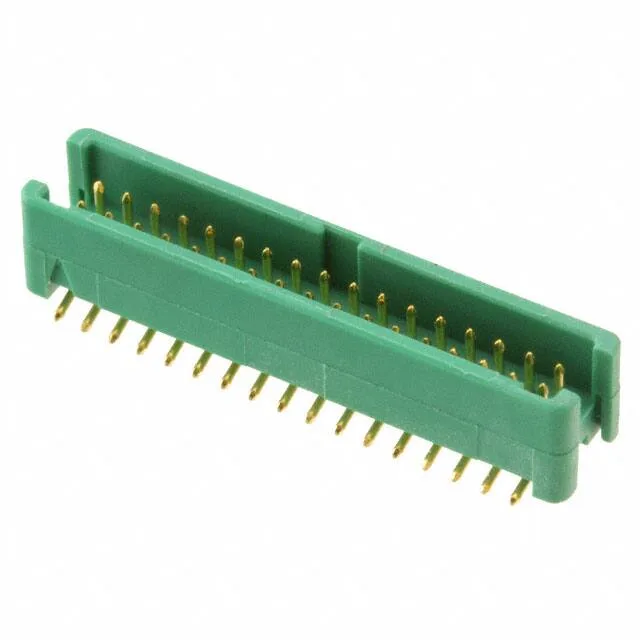

CONN HEADER SMD 34POS 1.25MM
$15.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Gecko |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 2A per Contact |
| Operating temperature | -65°C ~ 150°C |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Mated stacking heights | 7.35mm, 7.45mm, 7.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 34 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Sourcing this connector
Harwin Inc. G125-MS13405L0P is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Harwin Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
