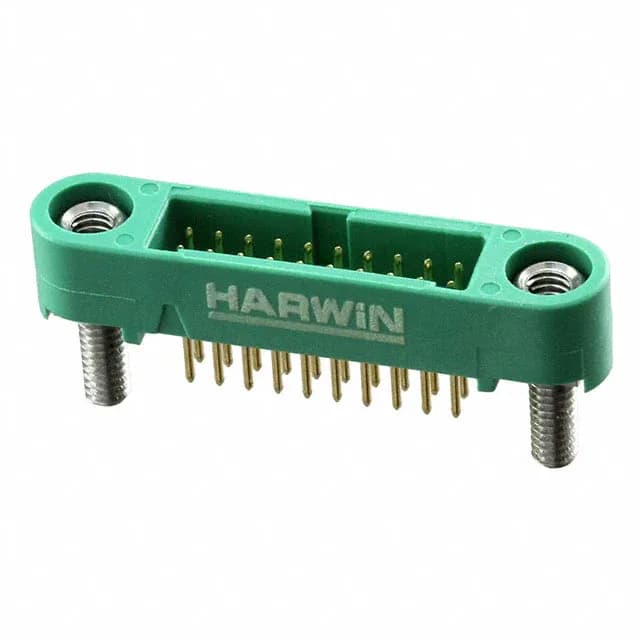

Harwin Inc. G125-MV12005M2P
MPNG125-MV12005M2P
Active
CONN HEADER VERT 20POS 1.25MM
$11.8100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGecko SL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Gecko SL |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Threaded |
| Voltage rating | 450V |
| Current rating | 2A per Contact |
| Operating temperature | -65°C ~ 150°C |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 7.35mm, 7.45mm, 7.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Mating Flange, Mounting Flange, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 20 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
