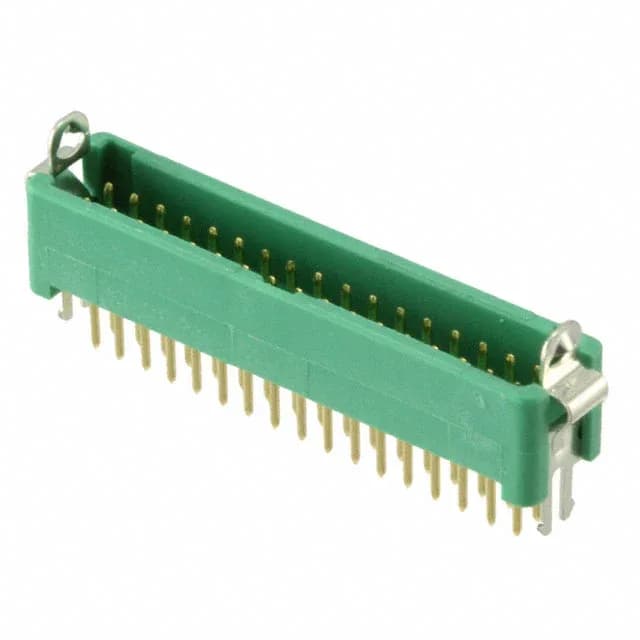

Harwin Inc. G125-MV13405L1P
MPNG125-MV13405L1P
Active
CONN HEADER VERT 34POS 1.25MM
$11.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGecko
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Gecko |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Current rating | 2A per Contact |
| Operating temperature | -65°C ~ 150°C |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Mated stacking heights | 7.25mm, 7.35mm, 7.7mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
| Features | Board Lock, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 34 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
