Harwin Inc. H2039-01
MPNH2039-01
Active

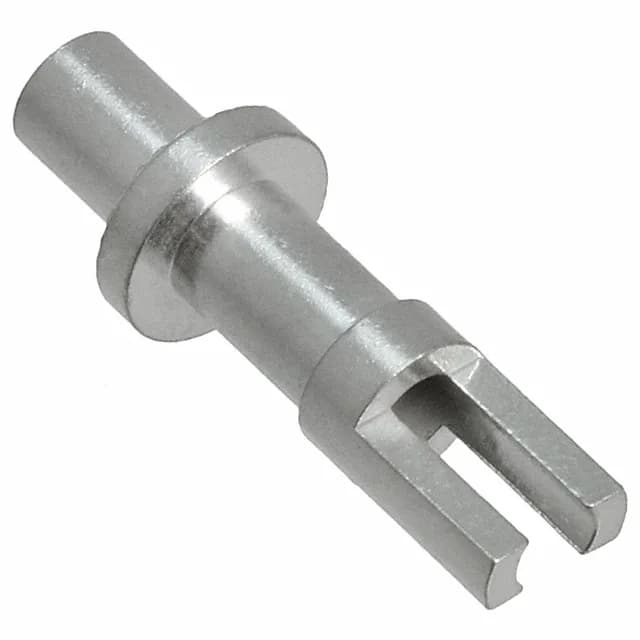

TERM TURRET HOLLOW L=12.7MM TIN
$1.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End, Fork, Hollow |
| Mounting hole diameter | 0.126\" ~ 0.129\" (3.19mm ~ 3.28mm) |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Tin |
| Board thickness | 0.126\" (3.20mm) |
| Flange diameter | 0.219\" (5.56mm) |
| Staking side ID | 0.086\" ~ 0.089\" (2.18mm ~ 2.26mm) |
| Staking side OD | 0.122\" ~ 0.125\" (3.10mm ~ 3.18mm) |
| Length - overall | 0.656\" (16.66mm) |
| Number of turrets | Single |
| Length - above board | 0.500\" (12.70mm) |
| Length - below flange | 0.156\" ~ 0.161\" (3.96mm ~ 4.09mm) |
| Diameter - turret head | 0.151\" ~ 0.156\" (3.83mm ~ 3.96mm) |
