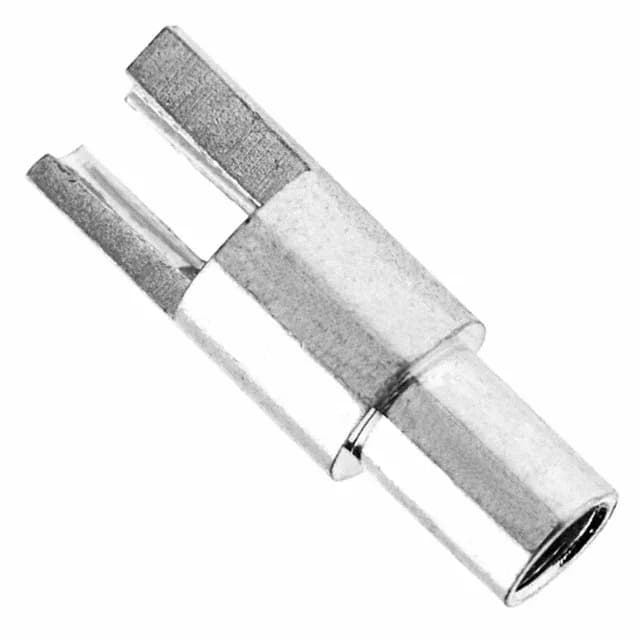

Harwin Inc. H2055-01
MPNH2055-01
Active
TERM TURRET HOLLOW L=6.35MM TIN
$0.5400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End, Fork, Hollow |
| Mounting hole diameter | 0.094\" ~ 0.097\" (2.39mm ~ 2.46mm) |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Tin |
| Board thickness | 0.094\" (2.39mm) |
| Flange diameter | 0.125\" (3.18mm) |
| Staking side ID | 0.067\" ~ 0.070\" (1.70mm ~ 1.78mm) |
| Staking side OD | 0.091\" ~ 0.094\" (2.31mm ~ 2.39mm) |
| Length - overall | 0.375\" (9.53mm) |
| Number of turrets | Single |
| Length - above board | 0.250\" (6.35mm) |
| Length - below flange | 0.125\" ~ 0.130\" (3.18mm ~ 3.30mm) |
