Harwin Inc. H2072ZL1
MPNH2072ZL1
Active

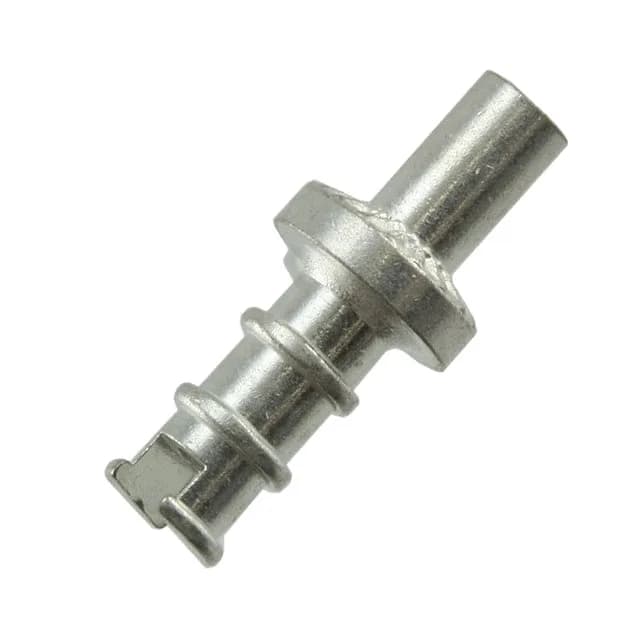

TERM TURRET SLOTTED L=6.52MM TIN
$0.7500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End, Fork |
| Mounting hole diameter | 0.079\" ~ 0.083\" (2.01mm ~ 2.11mm) |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Tin |
| Board thickness | 0.094\" (2.39mm) |
| Flange diameter | 0.156\" (3.96mm) |
| Staking side ID | 0.046\" ~ 0.048\" (1.17mm ~ 1.22mm) |
| Staking side OD | 0.074\" ~ 0.079\" (1.87mm ~ 2.01mm) |
| Length - overall | 0.382\" (9.70mm) |
| Number of turrets | Triple |
| Length - above board | 0.257\" (6.52mm) |
| Length - below flange | 0.125\" (3.18mm) |
| Diameter - turret head | 0.100\" (2.54mm) |
