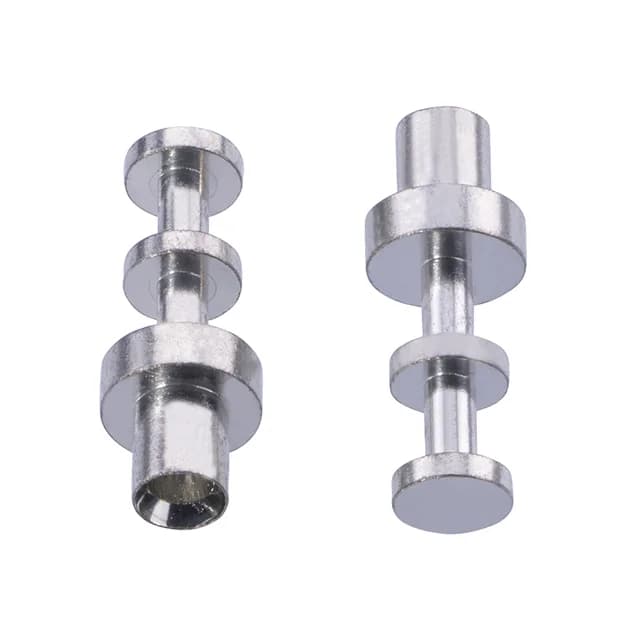

Harwin Inc. H2122-01
MPNH2122-01
Active
TERM TURRET SINGLE L=9.53MM TIN
$0.7200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End |
| Mounting hole diameter | 0.112\" ~ 0.115\" (2.85mm ~ 2.93mm) |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Tin |
| Board thickness | 0.094\" (2.39mm) |
| Flange diameter | 0.187\" (4.75mm) |
| Staking side ID | 0.073\" ~ 0.076\" (1.85mm ~ 1.93mm) |
| Length - overall | 0.500\" (12.70mm) |
| Number of turrets | Double |
| Length - above board | 0.375\" (9.53mm) |
| Length - below flange | 0.125\" ~ 0.130\" (3.18mm ~ 3.30mm) |
| Diameter - turret head | 0.137\" ~ 0.140\" (3.48mm ~ 3.56mm) |
