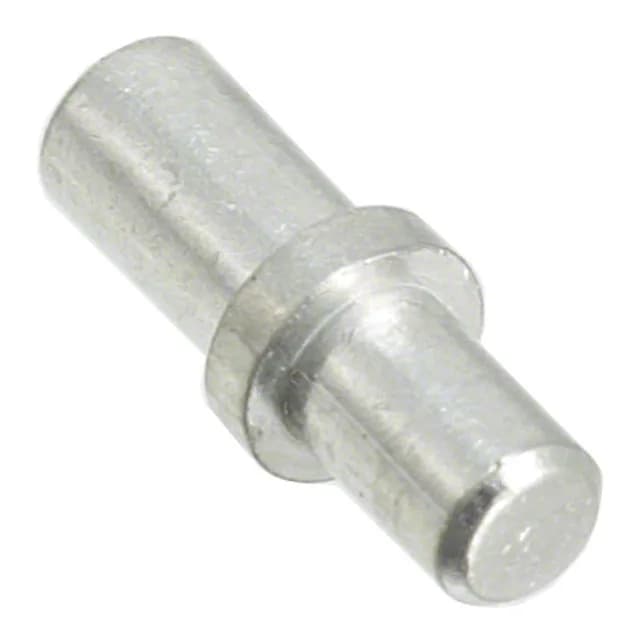

Harwin Inc. H3163-01
MPNH3163-01
Active
CONN PIN RCPT .035-.041 PRESSFIT
$1.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.086\" ~ 0.090\" (2.18mm ~ 2.29mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.192\" (4.88mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit |
| Contact finish | Gold |
| Flange diameter | 0.125\" (3.18mm) |
| Insertion force | 3.00N ~ 9.00N |
| Length - overall | 0.312\" (7.92mm) |
| Accepts pin diameter | 0.035\" ~ 0.041\" (0.89mm ~ 1.05mm) |
| Contact finish thickness | 5.90µin (0.150µm) |
