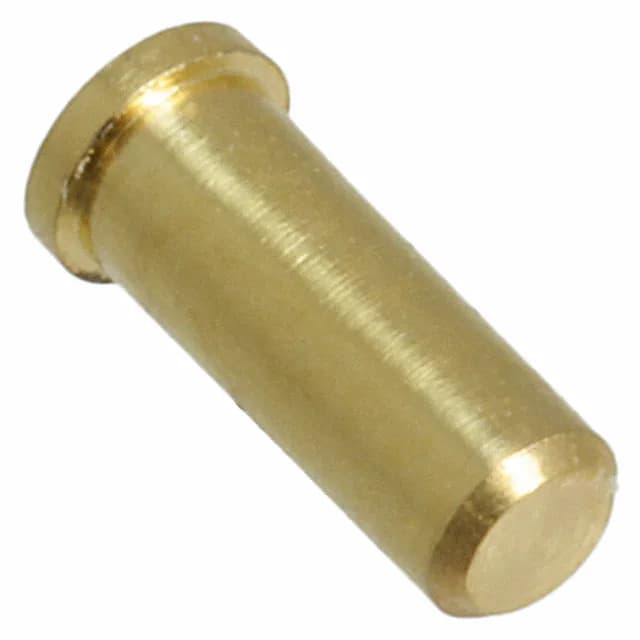

Harwin Inc. H3183-05
MPNH3183-05
Active
CONN PIN RCPT .035-.041 SOLDER
$0.5300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.075\" ~ 0.079\" (1.91mm ~ 2.01mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.140\" (3.56mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.092\" (2.34mm) |
| Insertion force | 3.00N ~ 9.00N |
| Length - overall | 0.207\" (5.26mm) |
| Accepts pin diameter | 0.035\" ~ 0.041\" (0.89mm ~ 1.05mm) |
| Contact finish thickness | 5.90µin (0.150µm) |
