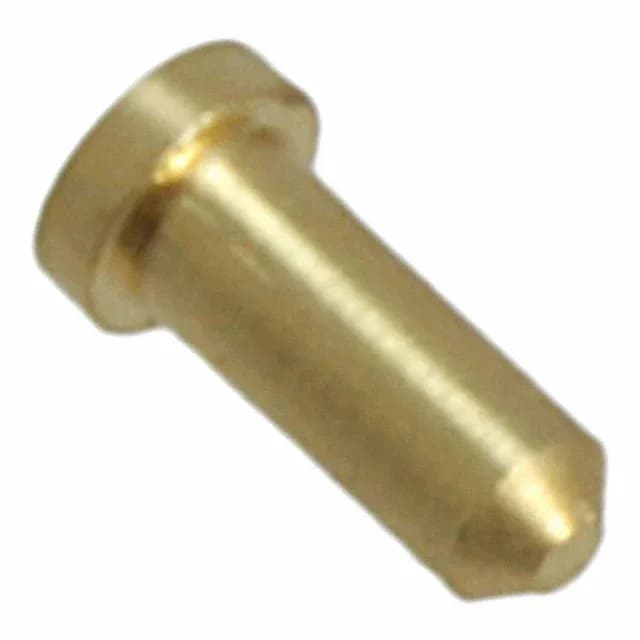

Harwin Inc. H3190-05
MPNH3190-05
Active
CONN PIN RCPT .018-.020 SOLDER
$0.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.039\" ~ 0.043\" (0.99mm ~ 1.09mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.091\" (2.30mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.057\" (1.45mm) |
| Insertion force | 2.00N ~ 6.00N |
| Length - overall | 0.118\" (3.00mm) |
| Pin hole diameter | 0.042\" (1.07mm) |
| Accepts pin diameter | 0.018\" ~ 0.020\" (0.46mm ~ 0.51mm) |
| Contact finish thickness | 3.94µin (0.10µm) |
