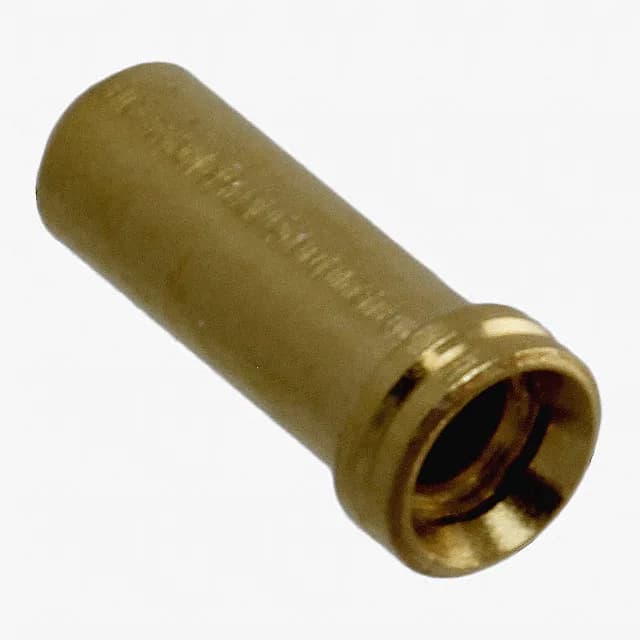

Harwin Inc. H8504-05
MPNH8504-05
Active
CONN PIN RCPT .024-.033 SOLDER
$0.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.075\" ~ 0.079\" (1.91mm ~ 2.01mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.183\" (4.65mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.093\" (2.36mm) |
| Insertion force | 1.50N ~ 5.01N |
| Length - overall | 0.224\" (5.69mm) |
| Accepts pin diameter | 0.024\" ~ 0.033\" (0.60mm ~ 0.85mm) |
| Contact finish thickness | 5.90µin (0.150µm) |
