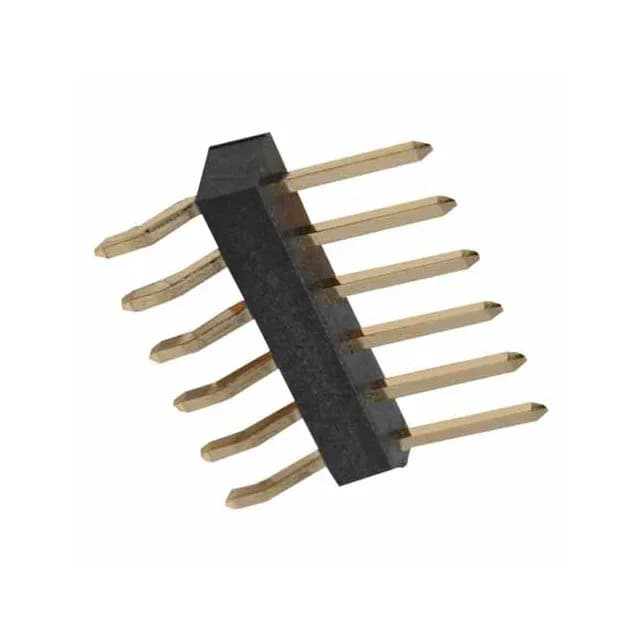

Harwin Inc. M20-8900605R
MPNM20-8900605R
Active
CONN HEADER SMD R/A 6POS 2.54MM
$1.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M20 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.136\" (3.46mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - mating | Gold |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - mating | Flash |
