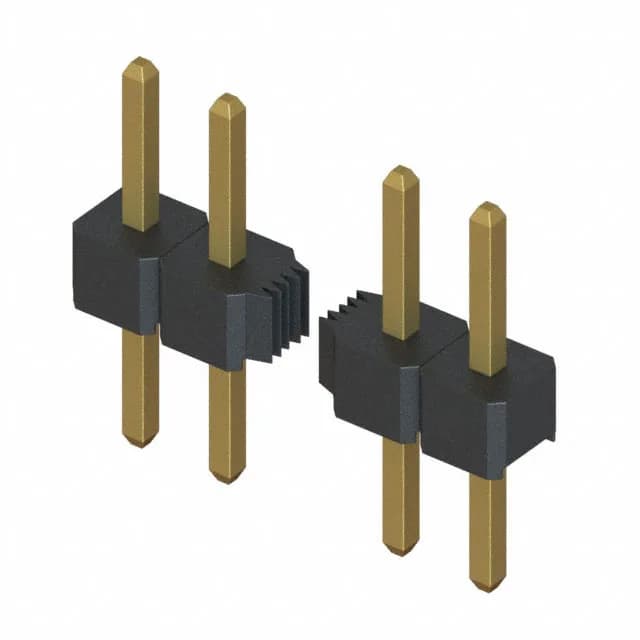

Harwin Inc. M22-2010505
MPNM22-2010505
Active
CONN HEADER VERT 5POS 2MM
$0.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM22
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M22 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Cuttable |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Mated stacking heights | 5.9mm, 8.6mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.331\" (8.40mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.138\" (3.50mm) |
