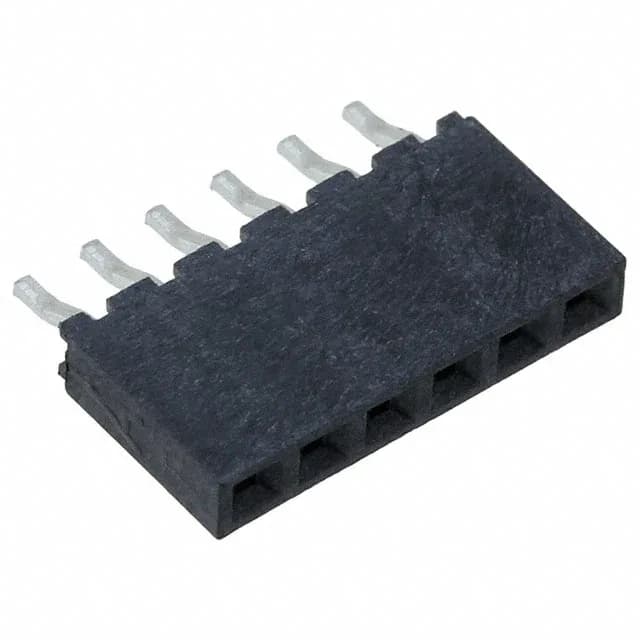

Harwin Inc. M22-6540642R
MPNM22-6540642R
Active
CONN RCPT 6P 0.079 GOLD SMD R/A
$1.3000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM22
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M22 |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.079\" (2.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 0.59µin (0.015µm) |
