Harwin Inc. M300-FV3104500
MPNM300-FV3104500
Active

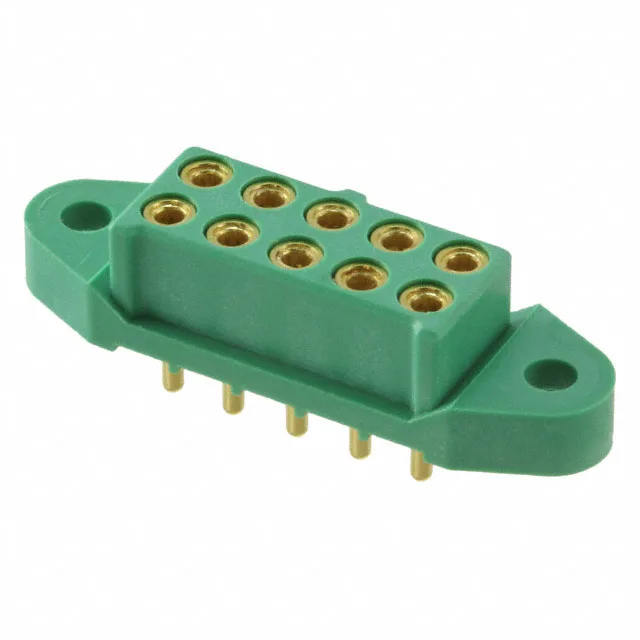

CONN RCPT 10POS 0.118 GOLD PCB
$21.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM300
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M300 |
| Type | Female Socket, Power |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Voltage rating | 600V |
| Operating temperature | -65°C ~ 175°C |
| Contact material | Beryllium Copper |
| Insulation color | Green |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mated stacking heights | 8.9mm |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Mating Flange |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
