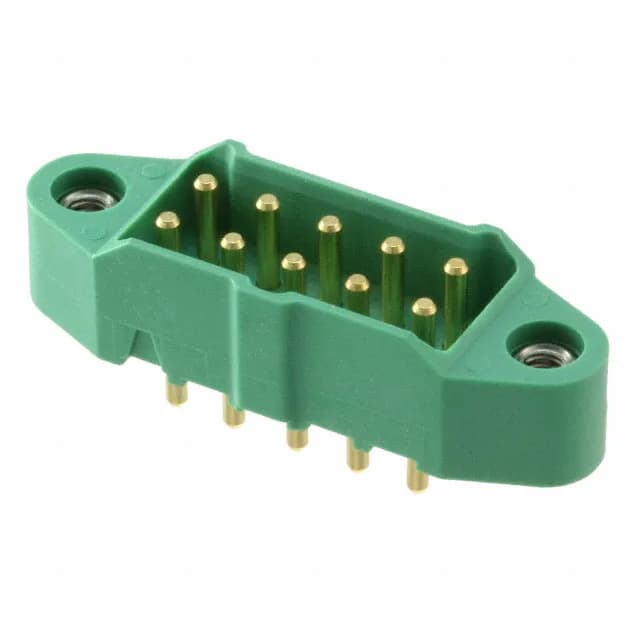

Harwin Inc. M300-MV31045M1
MPNM300-MV31045M1
Active
CONN HEADER VERT 10POS 3MM
$9.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM300
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M300 |
| Type | Male Pin, Power |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Threaded |
| Voltage rating | 600VAC/DC |
| Current rating | 10A |
| Operating temperature | -65°C ~ 175°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 8.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Mating Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 29.5µin (0.75µm) |
