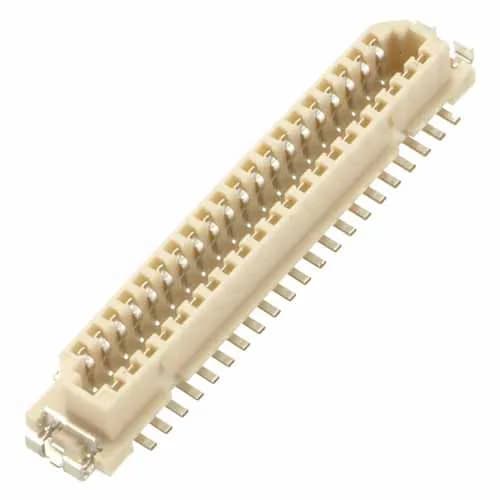

Harwin Inc. M40-6202546R
MPNM40-6202546R
Active
CONN RCPT 25POS SMD TIN
$3.9100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM40
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M40 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.130\" (3.30mm) |
| Mated stacking heights | 4.3mm |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Contact finish | Tin |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | 80.0µin (2.03µm) |
