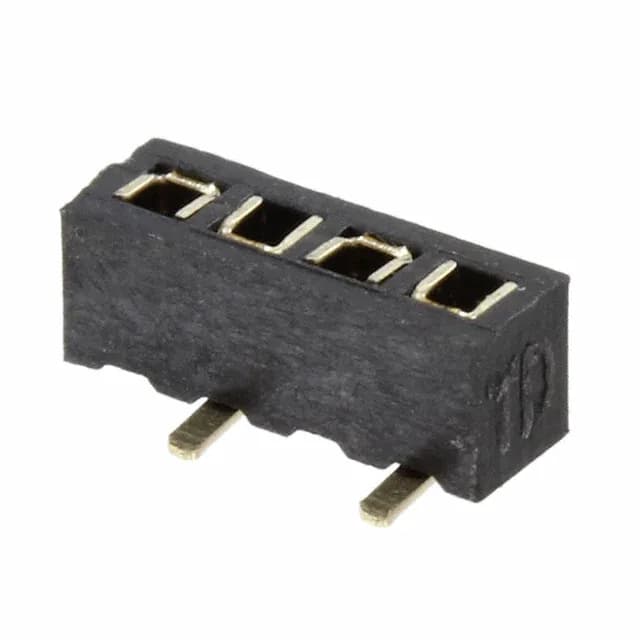

Harwin Inc. M50-3130445
MPNM50-3130445
Active
CONN RCPT 4POS 0.05 GOLD SMD
$0.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesArcher M50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Archer M50 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Voltage rating | 500VAC |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.079\" (2.00mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 3.1mm, 3.6mm, 3.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 4 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 12.0µin (0.30µm) |
