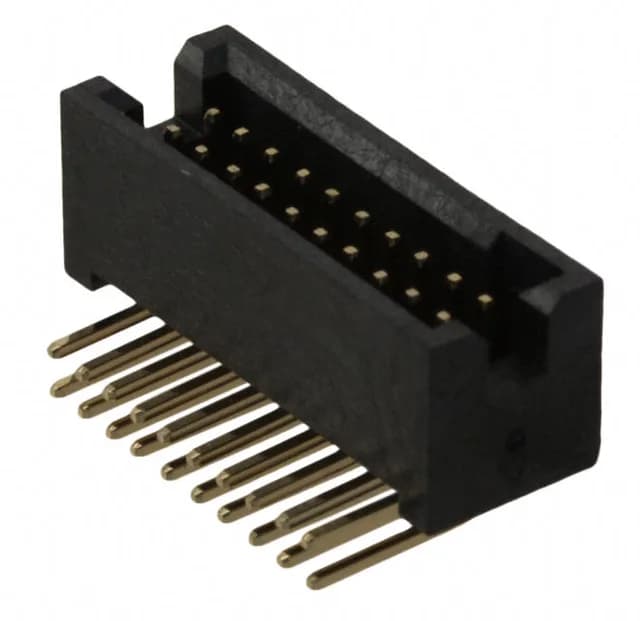

Harwin Inc. M50-4801045 — Pin Headers

Harwin Inc. M50-4801045

MPNM50-4801045
Active

CONN HEADER R/A 20POS 1.27MM

$4.1900Ref. price · indicative, final on quote
Harwin Inc. M50-4801045 datasheet (PDF)
RoHSROHS3 Compliant
SeriesArcher M50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

M50-4801045 key specifications
ParameterValue
SeriesArcher M50
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.222\" (5.65mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0

All specifications

M50-4801045 additional specifications
ParameterValue
StyleBoard to Board
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions20
Row spacing - mating0.050\" (1.27mm)
Contact finish - postGold
Contact length - post0.083\" (2.11mm)
Contact finish - matingGold
