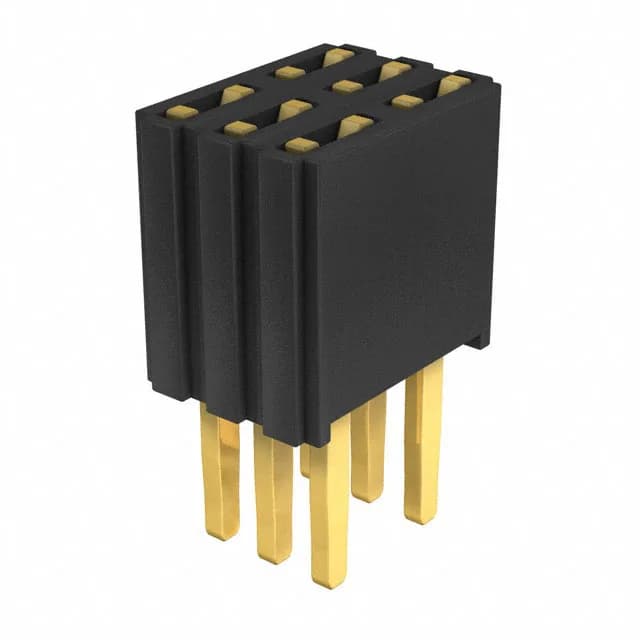

Harwin Inc. M52-5100345
MPNM52-5100345
Active
CONN RCPT 6POS 0.05 GOLD PCB
$1.0300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesArcher M52
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Archer M52 |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.181\" (4.60mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Medical, Telecommunications |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
