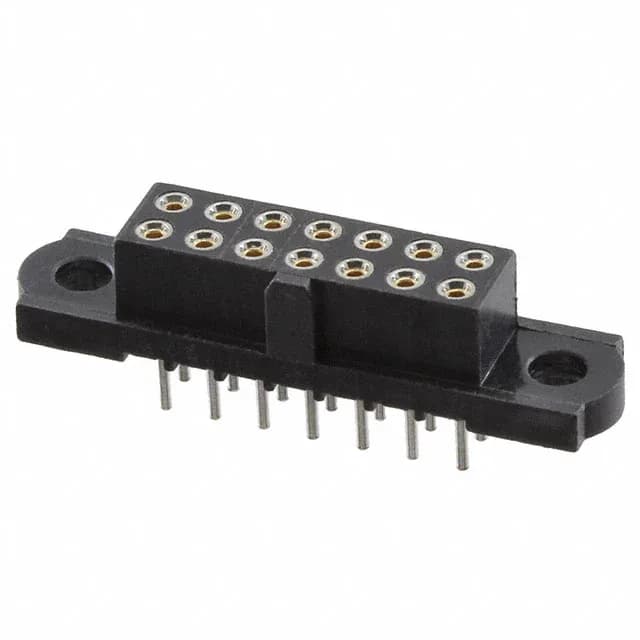

Harwin Inc. M80-4101442
MPNM80-4101442
Active
CONN RCPT 14POS 0.079 GOLD PCB
$8.6100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDatamate J-Tek
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Datamate J-Tek |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Voltage rating | 120V |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.205\" (5.20mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated stacking heights | 7.3mm, 7.55mm |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Mating Flange, Polarizing Key |
| Termination | Solder |
| Applications | Automotive, General Purpose, Military |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 137.8µin (3.50µm) |
| Contact finish thickness - mating | 12.0µin (0.30µm) |
