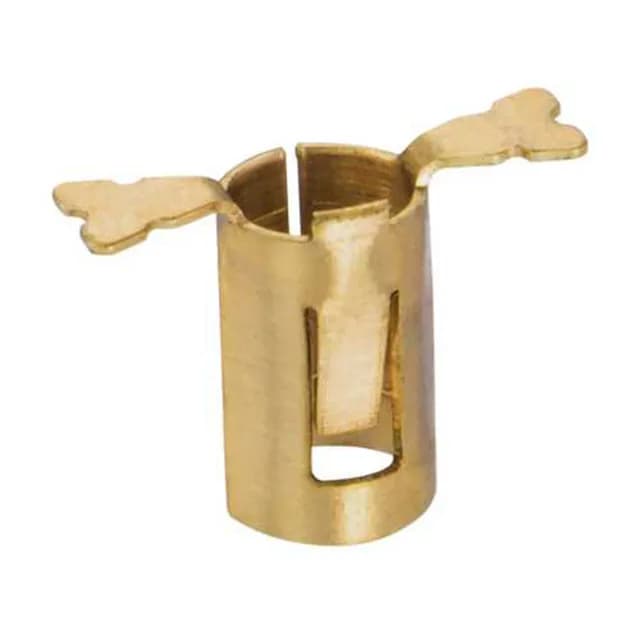

Harwin Inc. S9111-45R
MPNS9111-45R
Active
CONN PIN RCPT .059-0.075 SOLDER
$0.5700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSYCAMORE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SYCAMORE |
| Tail type | No Tail |
| Mounting hole diameter | 0.102\" (2.59mm) |
| Operating temperature | -50°C ~ 125°C |
| Socket depth | 0.108\" (2.75mm) |
| Contact material | Beryllium Copper |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Surface Mount |
| Contact finish | Gold |
| Insertion force | 3.00N ~ 17.00N |
| Length - overall | 0.160\" (4.06mm) |
| Pin hole diameter | 0.079\" (2.00mm) |
| Accepts pin diameter | 0.059\" ~ 0.075\" (1.50mm ~ 1.90mm) |
| Contact finish thickness | 3.94µin (0.10µm) |
