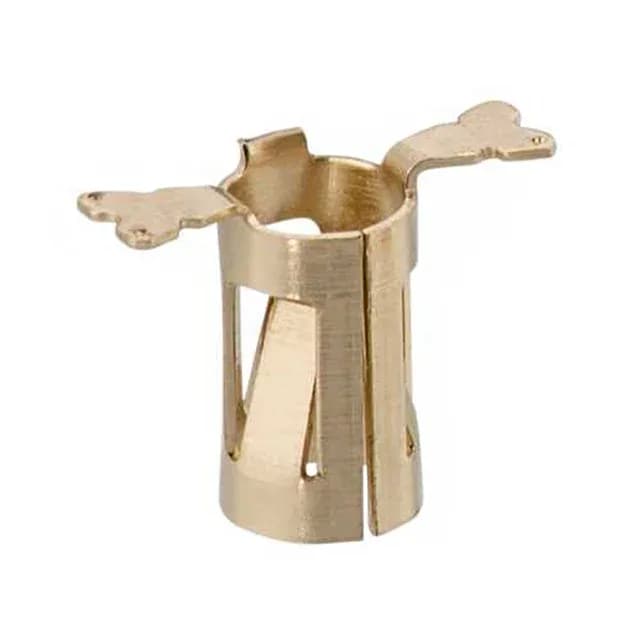

Harwin Inc. S9141-45R
MPNS9141-45R
Active
CONN PIN RCPT .031-.051 SOLDER
$0.5700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSYCAMORE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SYCAMORE |
| Tail type | No Tail |
| Mounting hole diameter | 0.102\" (2.59mm) |
| Operating temperature | -50°C ~ 125°C |
| Socket depth | 0.101\" (2.56mm) |
| Contact material | Beryllium Copper |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Surface Mount - Bottom Entry |
| Contact finish | Gold |
| Insertion force | 3.00N ~ 6.00N |
| Length - overall | 0.160\" (4.06mm) |
| Pin hole diameter | 0.079\" (2.00mm) |
| Accepts pin diameter | 0.031\" ~ 0.051\" (0.80mm ~ 1.30mm) |
| Contact finish thickness | 3.94µin (0.10µm) |
