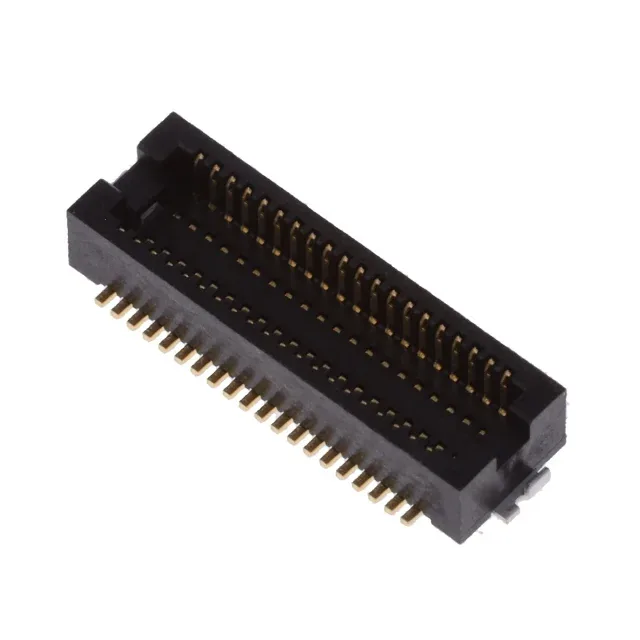

The Hirose DF12NB(3.0)-40DP-0.5V(51) is a 40-position, dual-row board-to-board header from the DF12 series, designed for parallel stacking at a fixed 3mm mated height. The 0.50mm pitch keeps the footprint compact — you're routing 40 signals through a board area that a 2.54mm pitch header would need three times the space for. This is a mezzanine interconnect for tight z-height budgets — think handheld devices, camera modules, or any assembly where the board gap is exactly 3mm and you need a reliable, production-ready SMT joint.
Sizing the Board Layout Around the 0.50mm Pitch
At 0.50mm pitch, the trace escape from the inner rows is the main layout constraint. You'll need at least a two-layer board with via-in-pad or microvias to route all 40 signals out cleanly — a single-layer fanout at this density is tight. The header sits 0.091" (2.30mm) above the board, so the total stack height with the mating receptacle is 3mm. That's a fixed dimension — no adjustment for board thickness variation. The solder retention features (small tabs on the body) add a mechanical anchor during reflow; they don't carry current but they prevent tombstoning on a dense board.
