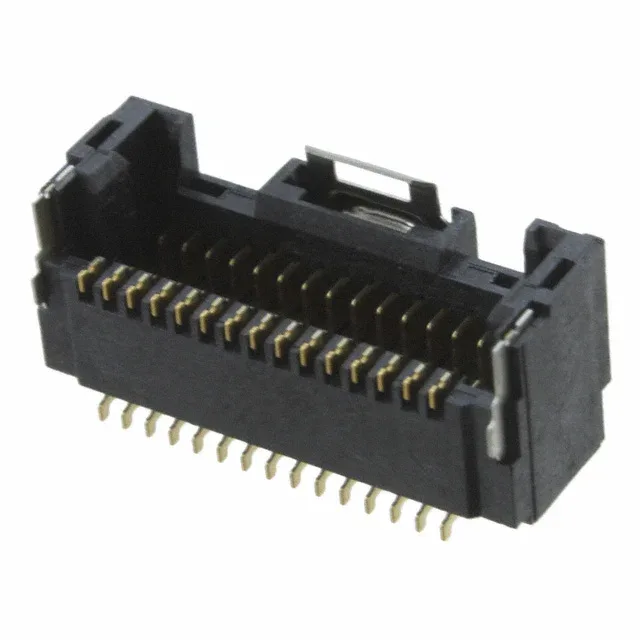

CONN HEADER SMD R/A 30POS 1MM
$1.8800Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | DF50 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -35°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.354\" (9.00mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 30 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 2.00µin (0.051µm) |
| Contact finish thickness - mating | 2.00µin (0.051µm) |
Sourcing this connector
Hirose Electric Co Ltd DF50-30DP-1H(51) is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Hirose Electric Co Ltd and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
