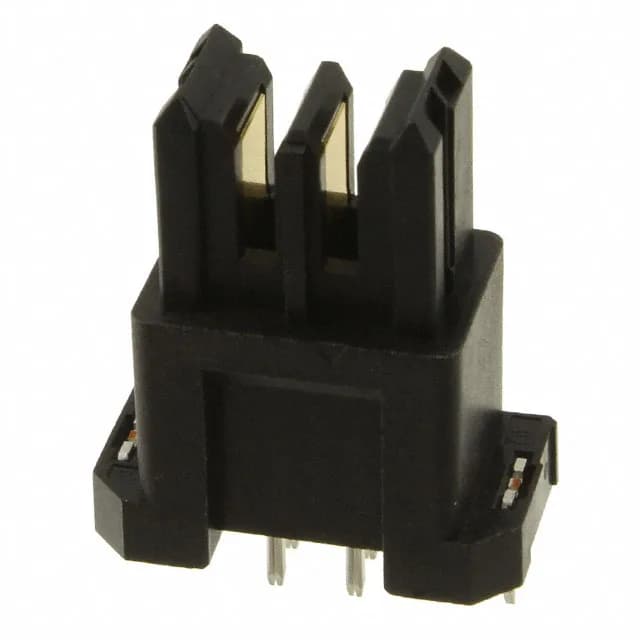

FX30B-2P-3.81DSA30 - Hirose Electric Co Ltd
MPNFX30B-2P-3.81DSA30
Active
$4.3200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FunctionMax™ FX30B |
| Type | Male Blade |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250V |
| Current rating | 16A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.953\" (24.20mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 30mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
