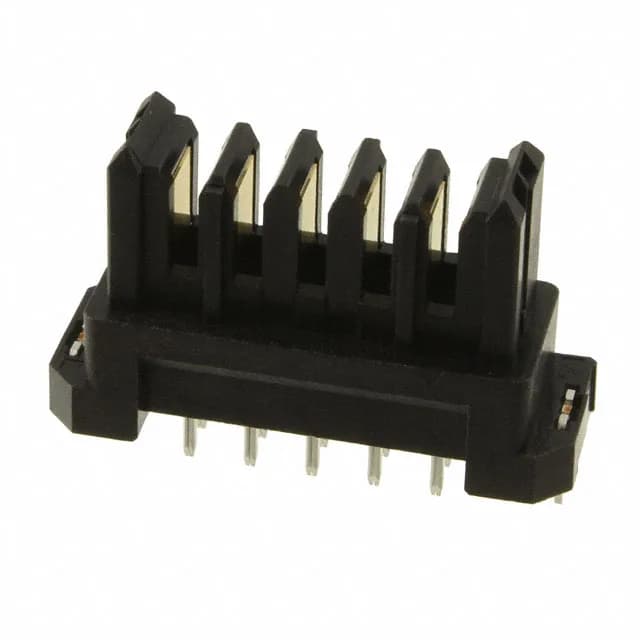

JAE FX30B-5P-3.81DSA25, 5-Position 3.81mm Board-to-Board Header
MPNFX30B-5P-3.81DSA25
Active
JAE FunctionMax FX30B board-to-board header, 5 positions, single row, 3.81 mm pitch, 13 A per contact at 250 V, gold-flash mating contacts with tin solder tails, push-pull 2-wall shroud, through-hole, 25 mm mated stacking height, -55 to 105 °C, UL94 V-0.
$5.4500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FunctionMax™ FX30B |
| Type | Male Blade |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250V |
| Current rating | 13A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.756\" (19.20mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 25mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Frequently asked questions
What is the listed style of the FX30B-5P-3.81DSA25?
Board to Board, consistent with the FunctionMax FX30B mid-stack header series.
What does the FX30B-5P-3.81DSA25 mate with?
The matching FX30B receptacle housing in the same series, position count, and pitch — confirm the shroud orientation (2-wall) matches your board stack before specifying the mating half.
