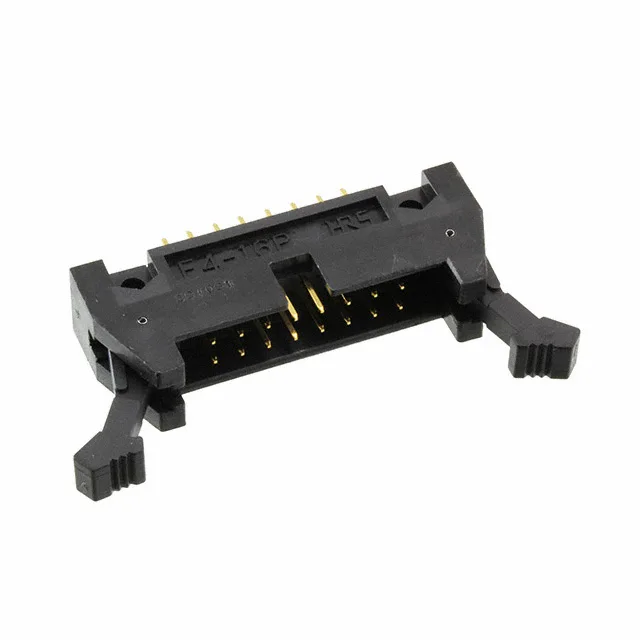

Hirose Electric Co Ltd HIF4-16P-3.18DSA(01)
MPNHIF4-16P-3.18DSA(01)
Last Buy
$10.2170Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HIF4 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 300V |
| Current rating | 3A |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.720\" (18.30mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.125\" (3.18mm) |
| Positions | 16 |
| Row spacing - mating | 0.125\" (3.18mm) |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.673\" (17.09mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.201\" (5.10mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
