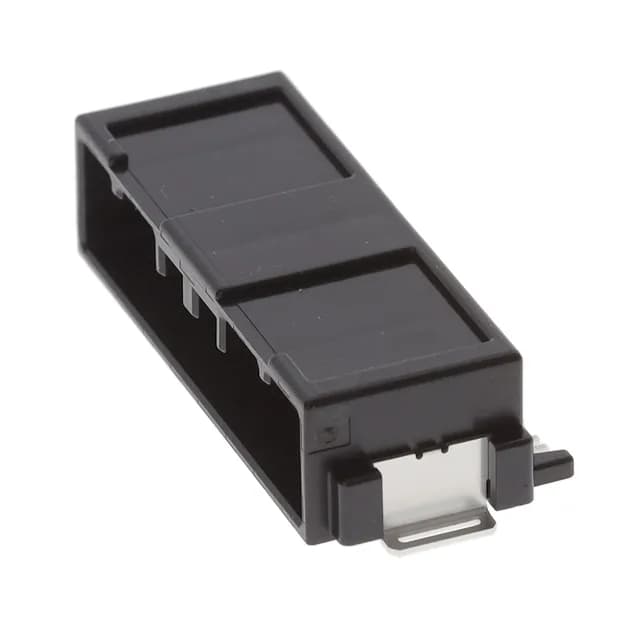

ZE05H-20DP-2H - Hirose Electric Co Ltd
MPNZE05H-20DP-2H
Active
CONN RCPT SMT R/A 2MM 20POS
$2.7300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesZE05
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ZE05 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 60VAC/DC |
| Current rating | 2A, 5A |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.348\" (8.84mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
