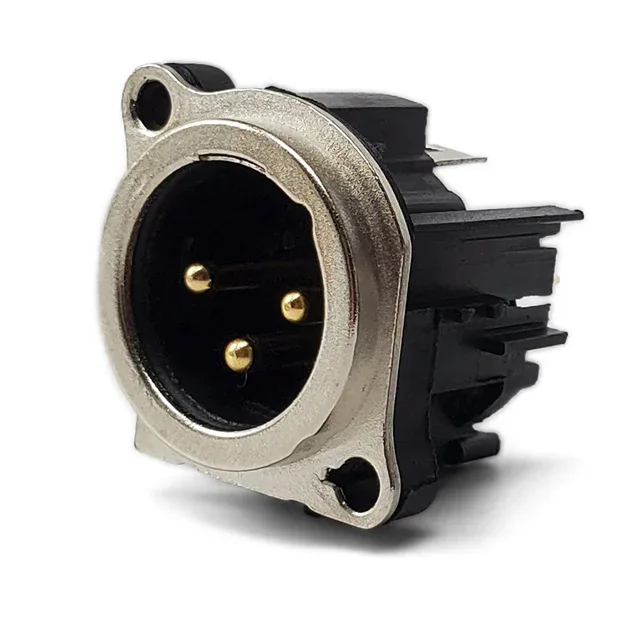

IO Audio Technologies IO-XLR3-M-BV
MPNIO-XLR3-M-BV
Active
CONN RCPT MALE XLR 3P GOLD SLDR
$3.81Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | B |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Male Pins |
| Fastening type | Latch Lock |
| Voltage rating | 50VAC |
| Current rating | 6A |
| Mounting feature | Flange |
| Operating temperature | -40°C ~ 70°C |
| Color | Black, Silver |
| Shell material | Polyamide (PA), Nylon |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Board Guide, Ground |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio, Lighting Control |
| Positions | 3 |
| Shell size - insert | XLR |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 1.97µin (0.050µm) |
